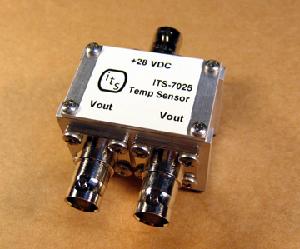

The ITS-7025 Temperature Sensor was developed to monitor the temperature of liquid-cooled klystron amplifiers. The sensor is designed to clamp directly to the cooling pipe and provide an analog voltage output from 0 to 10 VDC corresponding to 0 to 100 degC with 2 degC accuracy. Two analog outputs are provided; one for connection to a remote data acquisition system, and a second for local service monitoring. A single +28 VDC (other voltages available) powers the sensor which draws less than 100 uA.
|
|
