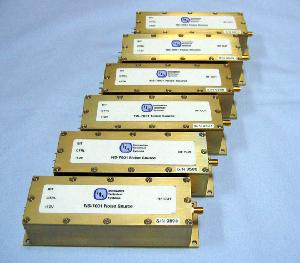

The NS-7001 is high-power noise source specifically designed to operate in the 2.11-2.17 GHz UMTS band. It features flat output power that is regulated over a wide temperature range with high rejection outside the operating band of interest. Logic control is provided to enable/disable the noise source and an internal BIT function continuously monitors the output power. Other frequency bands and power levels are available.
NS-7001 Specifications
Parameter
Specification
Comments
Center
Frequency
2.14 GHz
Bandwidth
+/-30 MHz
min
Rejection
-40 dBc @
+/-70 MHz
Measured
relative to center frequency in 1 MHz bandwidth
Output
Power
+13 dBm
min
Flatness
1.4 dB max
(1.0 dB typ) peak-to-peak variation across 60 MHz bandwidth over temperature
Output
Power Variation
< 1dB
variation over temperature
Output
Return Loss
10 dB max
Output is
DC blocked
Output
Connector
SMA-F
BIT
Output
Logic High
(TTL) when Pout>6 dBm
Control
Logic
High (TTL) on CTRL pin will disable noise source. Open on CTRL pin enables
source.
DC
current reduced to <50 mA when source is disabled
TemperatureRange
-45 to
+85 degC
Bias
Voltage
+12 VDC
+/-1 VDC
Bias
Current
420 mA
max
Bias/Control
Connections
Solder
pins
Dimensions
124 (L) x
43 (W) x 36 (H) mm
139 (L) x
43 (W) mm
Body
dimensions
Mounting
plate
Mounting
4
mounting holes (3mm dia)
Located
3.8 mm from all four corners of mounting plate
